Русский язык

Product Product

Product

Sibo занимается потенциометрами и датчиками уже 30 лет.

MF
MF

MF

Analog-Readout Dials

瀏覽量： Вернуться: 2023-01-09

    Характеристики：

  • Analog-Readout

Измерение


Параметр

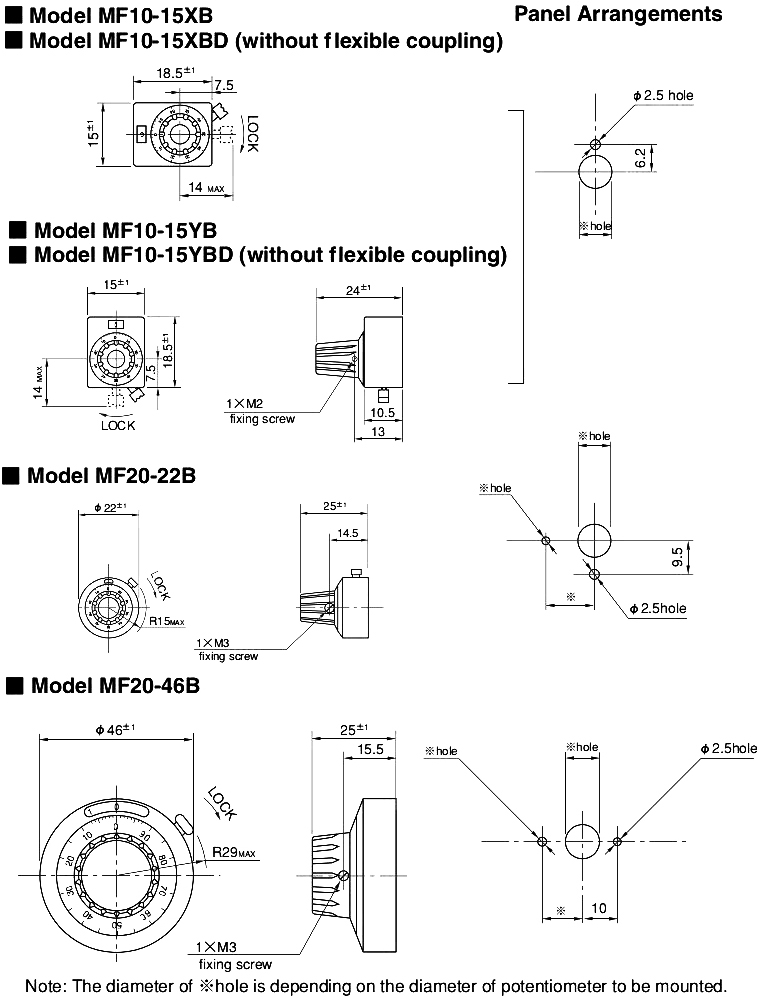

General Specifications (MF10-15B)

Number of Turns-Counting

10

Matching Shaft Dia. (mm)

Standard 3, Special 3.175,4

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 10HP, 25HP, 12HP, 12HHP, 12HPC

Patented Flexible Coupling

Yes

Lock Device

Yes

Operating Temperature Range

-30℃～+60℃

Mass

Approx.15g

General Specifications (MF10-15BD)

Number of Turns-Counting

10

Matching Shaft Dia. (mm)

Standard 3, Special 3.175,4

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 10HP, 25HP, 12HP, 12HHP, 12HPC

Patented Flexible Coupling

No

Lock Device

Yes

Operating Temperature Range

-30℃～+60℃

Mass

Approx.15g

General Specifications (MF20-22B)

Number of Turns-Counting

20

Matching Shaft Dia. (mm)

Standard 6, Special 3,3.175,4,6.35

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 10HP, 12HHP, 12HP, 12HPC, 25HP, 20HHP, 20HP, 46HD, 22HHP, 22HP

Patented Flexible Coupling

Yes

Lock Device

Yes

Operating Temperature Range

-30℃～+60℃

Mass

Approx.17g

General Specifications (MFn-46B)

Number of Turns-Counting

3,5,10,20

Matching Shaft Dia. (mm)

Standard 6, Special 6.35

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 20HP, 25HP, 20HHP, 22HP, 46HD, 22HHP

Patented Flexible Coupling

Yes

Lock Device

Yes

Operating Temperature Range

-30℃～+60℃

Mass

Approx.50g
